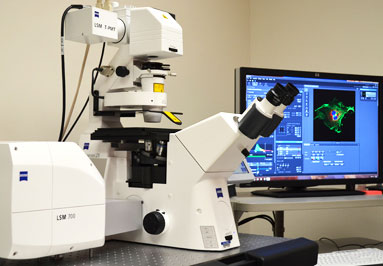

Zeiss LSM700

Widefield Visual Modes

• Bright Field
• DIC
• RGB Fluorescence: Exfo Xcite-120 Available Solid State LASERs
• 405nm
• 488nm
• 555nm
• 635nm

Detectors

• 2 Detectors with Spectral VSD (variable secondary dichroic)
• Transmitted Light Detector

Mounting Frames

• Universal Frame K for Slides
• Universal Frame KM for Plates

Imaging Features

• Observer Z1 Automated Stand
• Motorized: scanning stage for XY movements for tiling, Z for optical sectioning
• Single or multitrack image collection
• 8 or 12 or 16 bit pixel depth
• 128, 256, 1024, 2048 pixels per frame
• Zen 2012 Imaging Software for Acquisition and Analysis

Objectives

• Fluar 10x/0.5NA M27
• EC Plan-Neofluar 20x/0.5NA M27
• Plan-Apo 20x/0.8NA DICII
• Plan-Neofluar 40x/0.75NA DICII
• C-Apo 40x/1.2NA Water Imm DICIII
• iLCI Plan Neofluar 63x/1.3 Water Imm Corr M27
