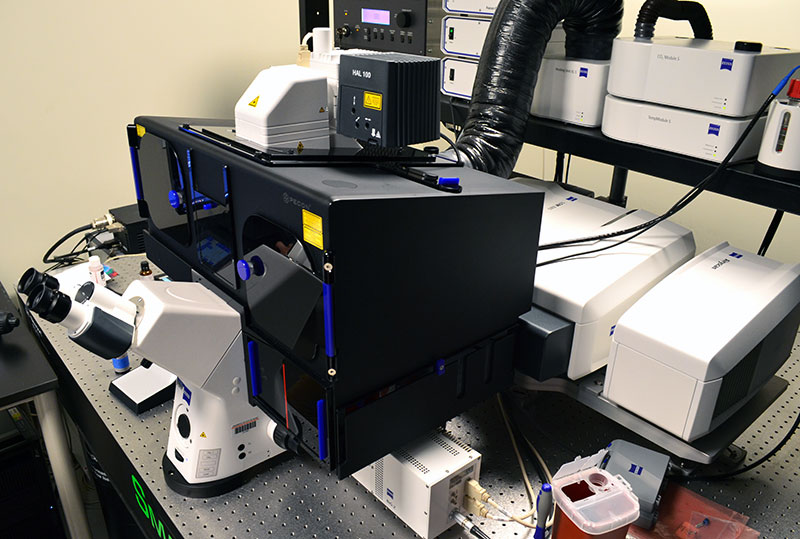

Zeiss LSM880 BRC

Laser Scanning Modes

  • Diode 405 nm
  • Argon Laser 458, 488, 514 nm
  • DPSS 561 nm
  • HeNe Laser 594 nm
  • HeNe Laser 633 nm
  • 2 PMT detectors
  • 1 GaAsP PMT detector
  • Transmitted Light detector
  • Airyscan detector with Airyscan FAST

Imaging Features

  • Airyscan super-resolution
  • Motorized Scanning Stage; XY movement for tiling, Z for optical sectioning
  • Line or Frame Switching multi-track image collection
  • 8 or 12 or 16 bit pixel depth
  • Lambda Mode
  • Linear Unmixing of spectral scans
  • Emission fingerprinting
  • Multiple ROI scanning
  • 3D projections and rendering from image stacks
  • 128x128, through 8196x8196 frame size
  • Ratio imaging
  • Continuously adjustable optical zoom
  • ZEN 2.3 Black and ZEN2.3 Blue
  • FRET, FRAP, FCS, Tiles, Positions, Experiment Designer, macros
  • Additional "Extreme Workstation" with 192 GB RAM
  • Pecon Incubator: controls temperature and CO2 levels during time lapse imaging, DARK LS
  • Definite Focus
  • Docking Station
  • HXP 120 Metal-Halide
  • DIC Optics

Objectives

  • Plan-Apo 10x/0.5 NA WD 2.0mm
  • Plan-Apo 20x/0.8 NA WD 0.55
  • LD LCI Plan-Apo 25x/0.8 NA IMM Corr
  • LD C-Apo 40x/1.1 Water Corr
  • C-Apo 40x/1.2 Water FCS
  • Plan-Apo 63x/1.4 NA Oil

2-Photon Excitation

Coherent Chameleon- tunable from (700nm - 1050nm)

BiG2: 2 channel GaAsP Detector with Non-Descanned Detection (500-550nm[Green], 570-610nm[Red]).
